Item Part No. Name Remarks / Characteristi cs Qty Machine applicability 1 796076 housing 1 2 798272 Pipe 1 3 796049 Lip seal 2 4 796134 Fixing clamp 2 5 797215 Screw 6 6 796136 Pipe 1 7 796138 sleeve 1 8 796137 Clamp 2 9 795926 Screw M8, H M8-25 1 10 796139 hose 1 11 796140 Screw 1 12 796141 sleeve 1 13 797243 pipe fitting 1 14 796142 O ring 1 15 796143 Adaptor connector 1 16 795998 O-RING 1 17 796144 Adaptor connector 1 18 795998 O-RING 1 19 796145 Connection 1 20 796146 O ring 1 21 796147 Gasket 1 22 796001 Thermostat 2 23 795996 Cover 1 24 795999 Screw H M10-90, M10 1 25 796000 Screw H M10-35, M10 2 26 795998 O-RING 1 27 795997 Screw 1

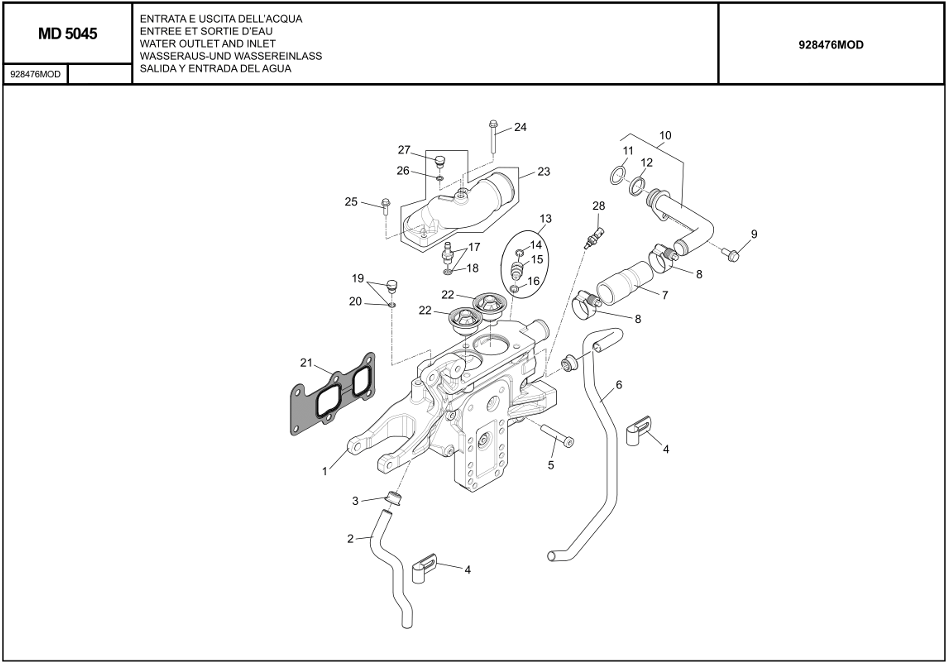

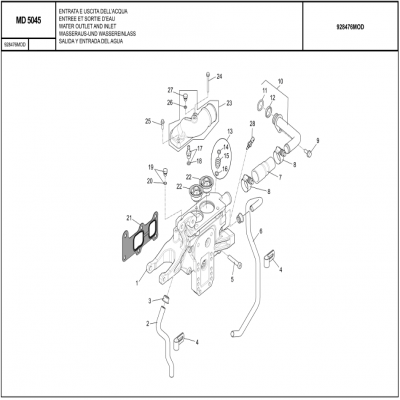

Item 28 Part No. 796417 MD5045 - WATER OUTLET AND INLET (928476mod) Name Remarks / Characteristi cs Qty 1 Machine applicability Sat Dec 21 08:39:01 UTC 2024 Coolant temperature sensor
